Through the high-speed relative movement of fixed teeth and rotating teeth, or the high-speed operation of static grinding disc and dynamic grinding disc, the fluid or semi-fluid material is subjected to strong shear force, friction force and high-frequency vibration, thereby achieving ultra-fine grinding, dispersion, emulsification, homogenization, mixing and other functions.

• Emulsification fineness: ≥2μm | Adjustment range: 1～0.01mm
• Output: 0.01～0.2t/h (10～200L/H medium water)
• Motor power: 1.1kW | Voltage: 380V; 220V 50Hz
• Motor speed: 2880r/min
• Dimensions: 420*280*760mm | Weight: 50kg
• Temperature control: -5℃～100℃ ±1℃ (Optional constant temperature water bath)

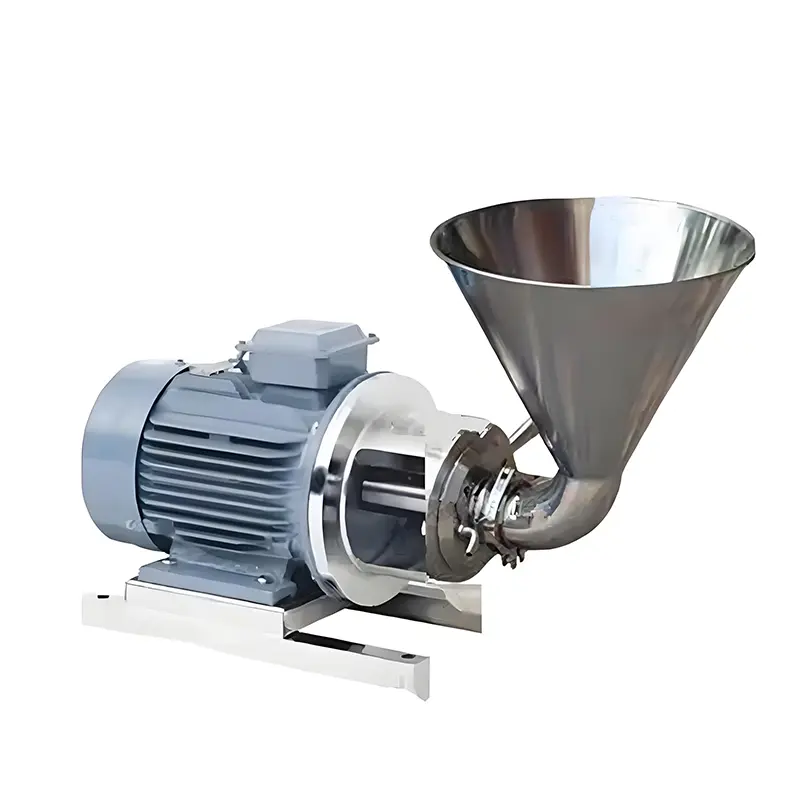

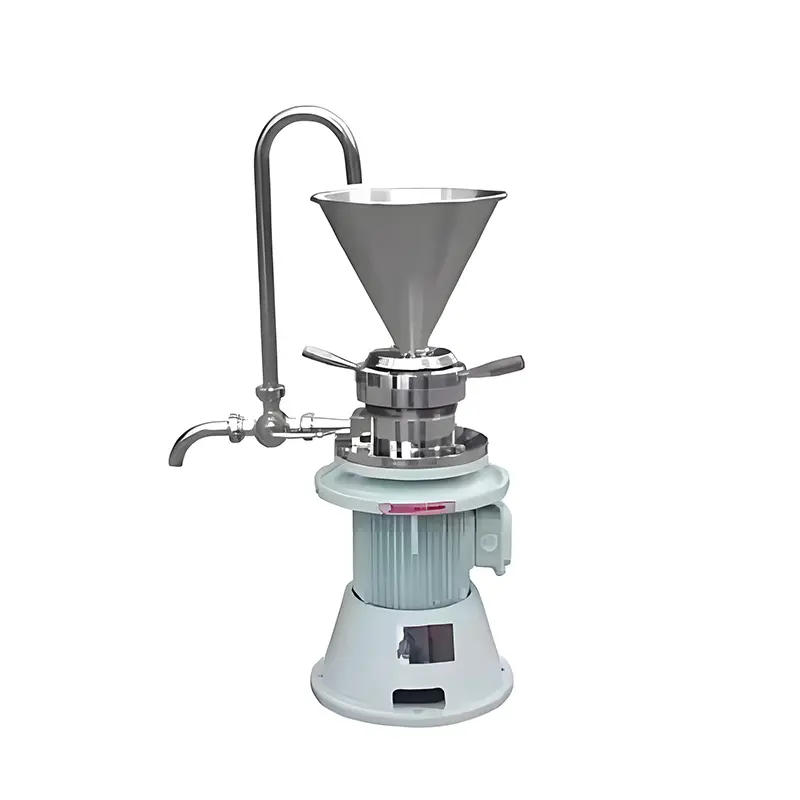

• Product Varieties: Available in vertical, split, horizontal, and integral types. Output ranges from 0.01t/h to 9t/h with motor speeds up to 3500 r/min.

This equipment is versatile across multiple industries:

• Road Engineering: Production of emulsified asphalt.
• Food Industry: Processing of dairy products, chocolate, etc.
• Chemical Industry: Production of pigments, dyes, lubricants, etc.
• Pharmaceutical Industry: Production of cod liver oil, Jianer ointment, and more.

To ensure long-term stable operation, please follow these guidelines:

• Regularly check motors and bearings; add or replace lubricants promptly.
• Clean the grinding chamber, stator, and rotor frequently to prevent material residue.
• Monitor stator and rotor wear, replacing components if severely worn.
• Ensure the cooling and temperature control systems are functioning normally.
