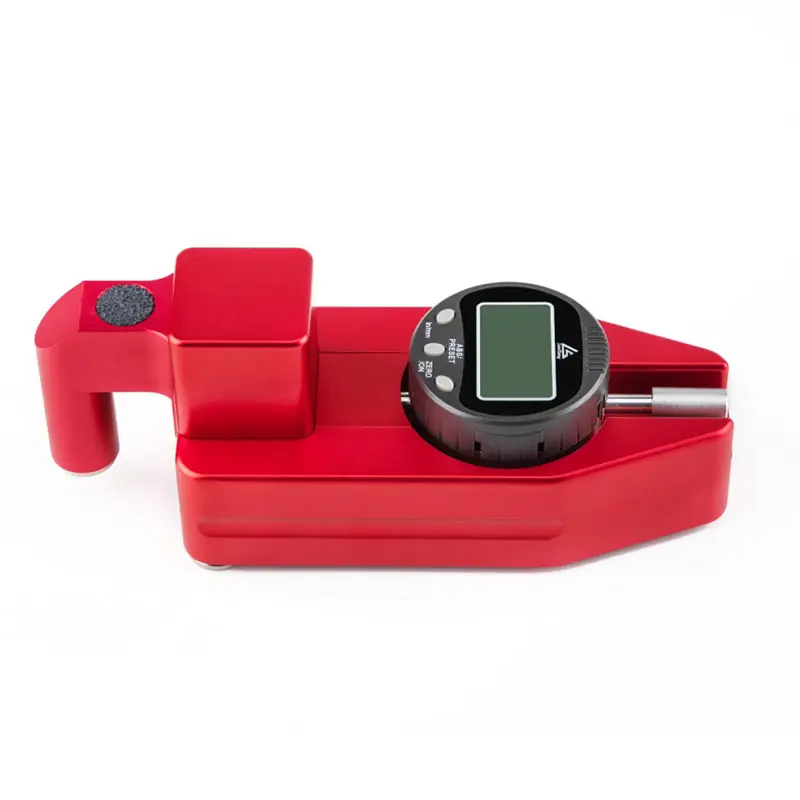

Minimum resolution of 0.01mm and indication accuracy of 0.02mm for precise measurement of road marking thickness.
Reasonable structural design with simple operation suitable for a wide range of applications.

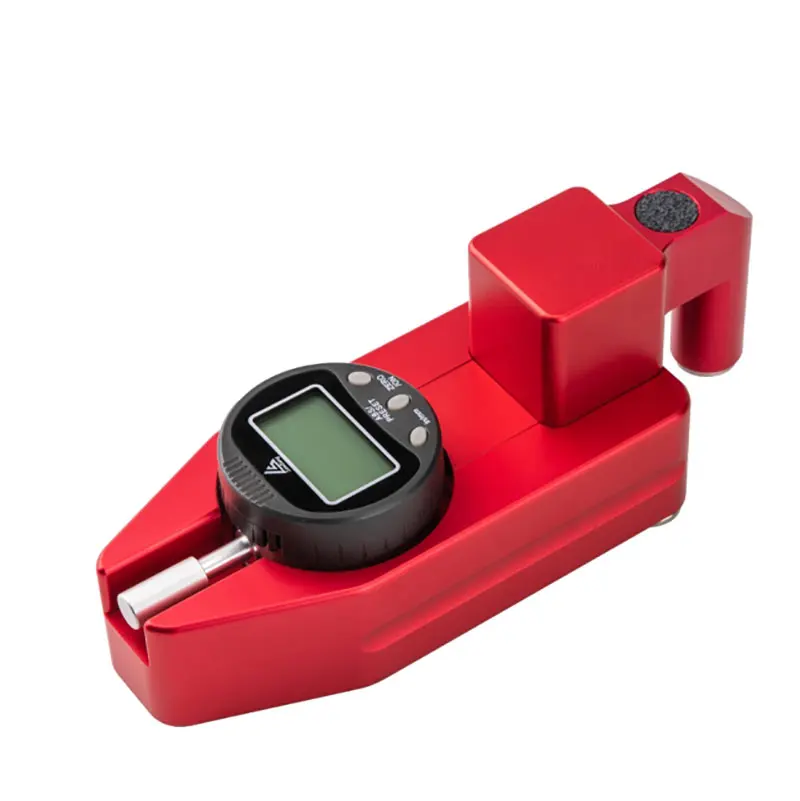

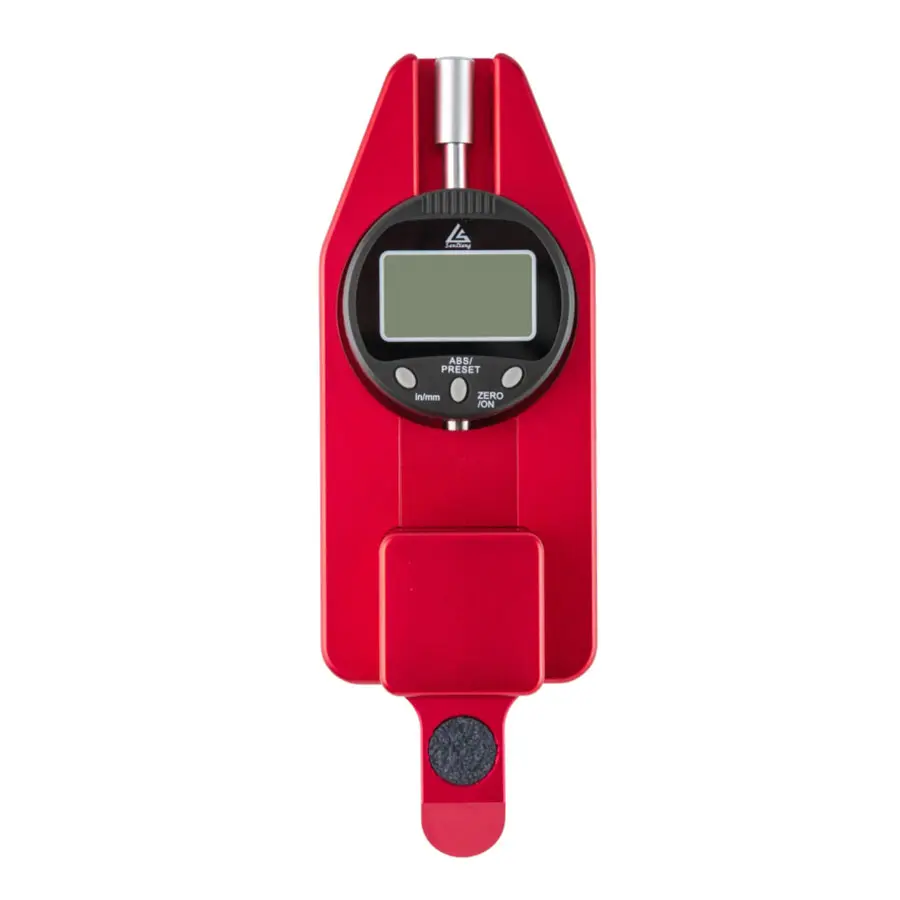

All-aluminum body using imported aluminum ingots with an anodized surface for durability and aesthetics.

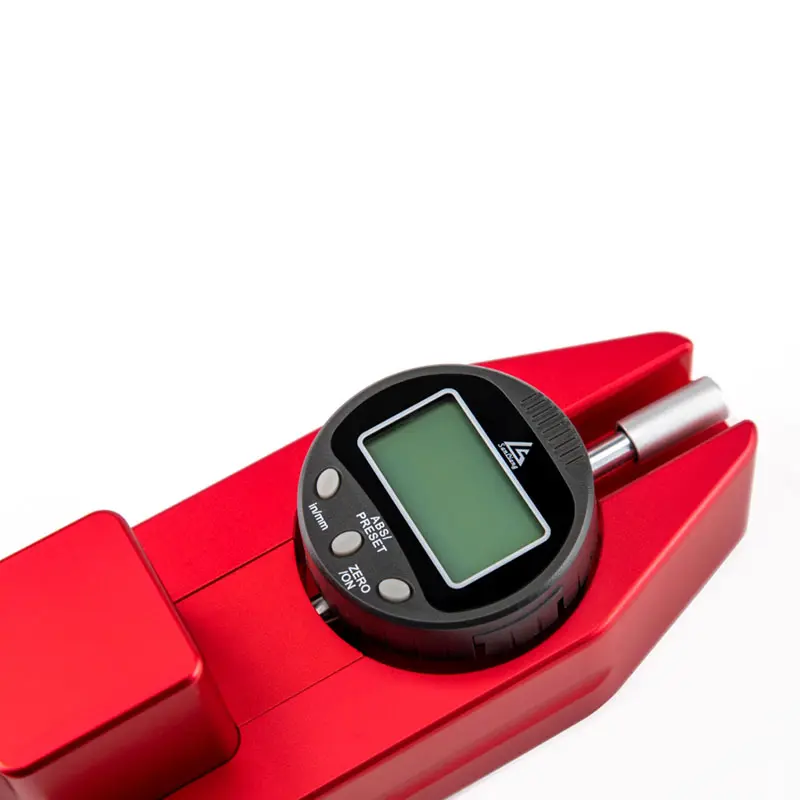

High-definition LCD display with imperial/metric switching and batch data export support.

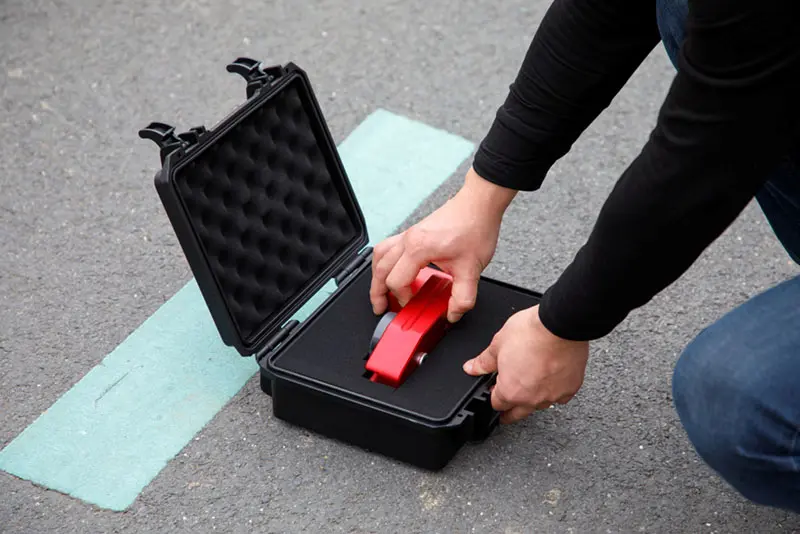

Avoid severe vibration. Store in dry, clean environments. Remove batteries during long-term storage. Ensure probes are vertical to the surface and avoid sliding to prevent wear.
| Measuring Range | -12.7mm ~ 12.7mm |
| Minimum Resolution | 0.01mm |
| Indicating Accuracy | 0.02mm |
| Usable Temperature | -10 ℃ to 50 ℃ |
| Instrument Type | High-precision dial indicator |
| Measurement Types | Height / Thickness / Depth |
Adjust base and moving block to horizontal plane. Fix dial gauge head and tighten screws. Clear screen to zero.

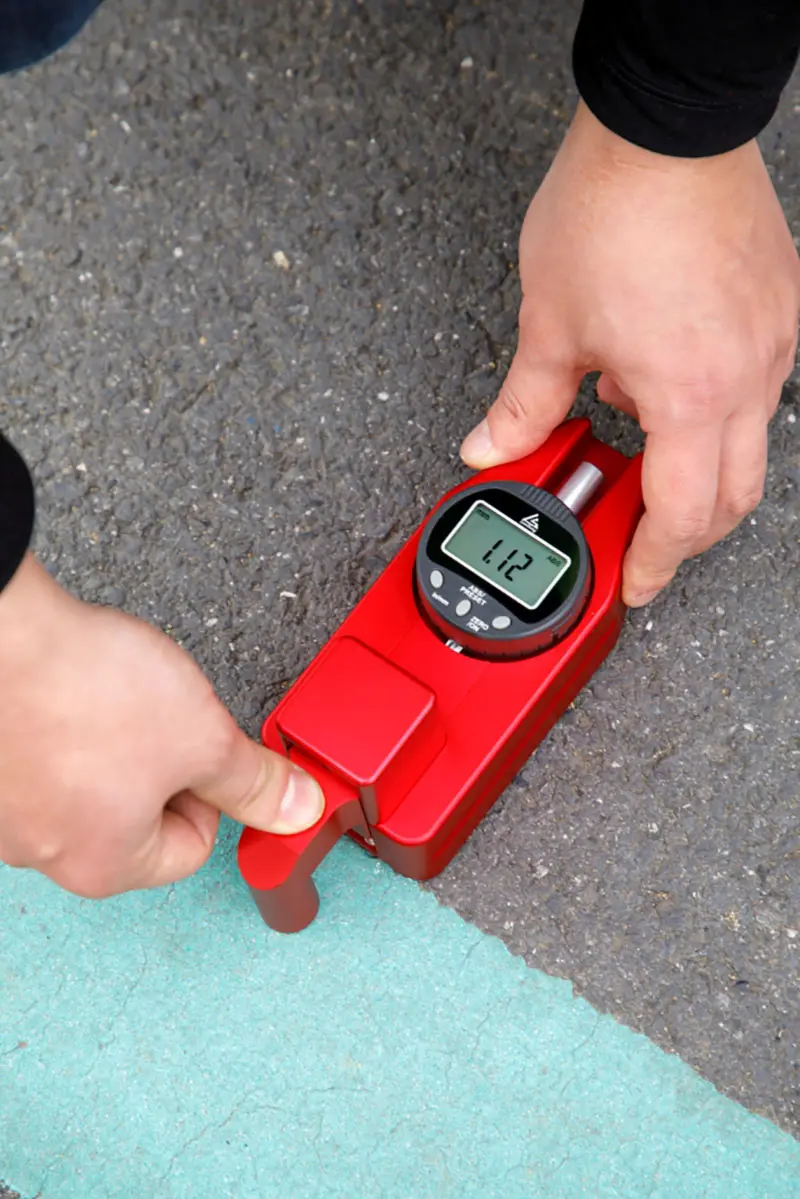

Place base on marking line. Ensure moving block is parallel. Read value after free fall. Press hold to lock data.
Switch between mm and imperial units. Export data via storage functions according to manual instructions.
A: The device supports a measuring range from -12.7mm to 12.7mm, suitable for most road marking applications.
A: The instrument supports a 16G SD card. You can export data in Excel format via the U-disk function directly to your computer.
A: Yes, it features a high-brightness LCD transparent touch screen designed specifically for clear visibility under outdoor lighting.
A: The instrument provides a minimum resolution of 0.01mm and an indication accuracy of 0.02mm.
A: Yes, it supports locking on-site inspection data and printing results via a connected Bluetooth printer.
A: The probe should be kept clean and vertical. If the contact surface is worn, it can be lightly polished with 500# fine sandpaper.
