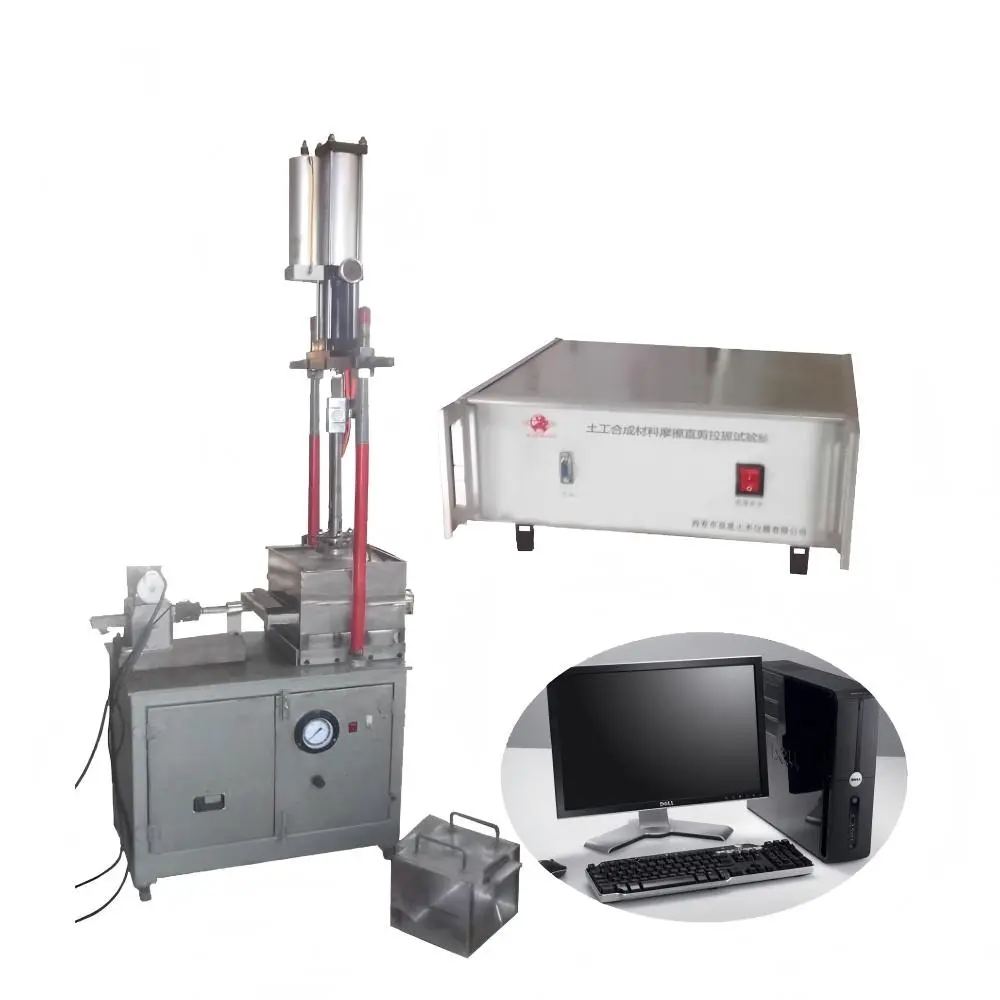

Wholesale Digital Display Anti friction pull-out tester for pavement and subgrade structure layer Measuring Instrument Manufacturers, Suppliers

This instrument is used for evaluating road surfaces, spraying, anti rutting agents, anti stripping agents, anti-seepage agents, new pavement surfaces, and testing the adhesion and friction resistance of pavement materials.

Product Description

Technical Equipment Parameters
Technical Parameters
Vertical Compressive Load 0-100KN, optional (for heavy-duty vehicles), accuracy: ± 0.05% FS, adjustable as needed (constant force)
Sample Size 300mm × 300mm × 100mm
Vertical Loading Head 300mm × 300mm × 10mm (with horizontal and vertical patterns) Strength Shore: 60 ± 5
Tensile Force & Deformation Force: 0-100KN (Accuracy: 0.05% FS); Deformation: 0-30mm ± 0.01mm
Temperature Range -20 ℃ to 60 ℃, programmable and arbitrarily set within the environmental chamber
Friction Speed 0mm-50mm ± 1mm
Voltage Requirement 380V 50Hz

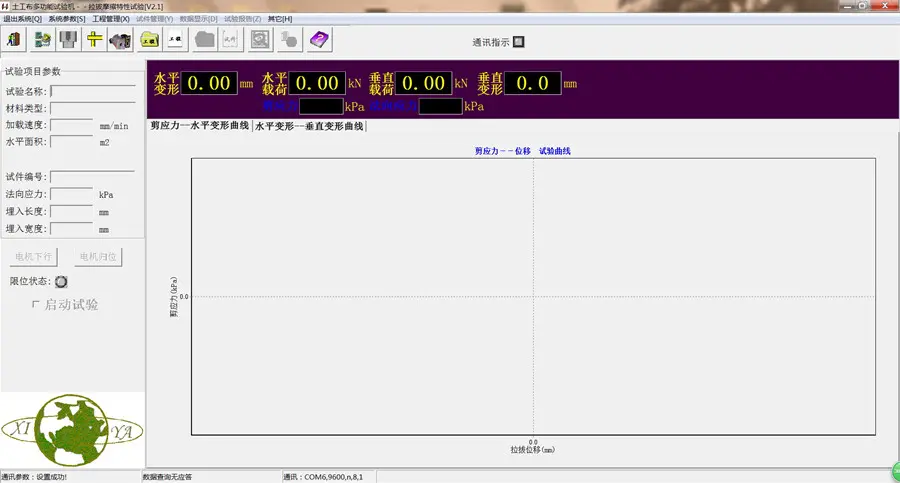

Data Analysis Real-time display of vertical force, tensile force, and deformation via computer software with graphical analysis
Product Description

This precision testing equipment is designed for high-accuracy measurement of compressive loads and tensile forces. Featuring a programmable environmental chamber, it allows for testing under controlled temperature conditions ranging from -20 ℃ to 60 ℃. The integrated computer software provides comprehensive data collection and real-time graphical analysis for raw experimental data.

Frequently Asked Questions
What is the maximum vertical load the equipment can handle?
The equipment supports a vertical compressive load of 0-100KN, which is optional for heavy-duty vehicle testing requirements.
How accurate are the force measurements?
The system provides high precision with an accuracy of ± 0.05% FS for both vertical load and tensile force.
Can the temperature be programmed for specific test cycles?
Yes, the environmental chamber temperature range of -20 ℃ to 60 ℃ is fully programmable and can be set arbitrarily to meet various testing standards.
What sample dimensions are compatible with this tester?
The standard sample size for this equipment is 300mm × 300mm × 100mm.
What kind of data output does the software provide?
The software provides real-time display and collection of vertical force, tensile force, and deformation, offering processed graphical analysis and raw data export.
What are the electrical requirements for installation?
The equipment operates on a standard voltage of 380V at a frequency of 50Hz.
