The static lateral pressure coefficient is the ratio of the effective lateral stress to the effective axial stress of soil under conditions of no lateral deformation.
The static lateral pressure coefficient of soil is calculated by determining the effective lateral stress and effective axial stress using a pressure gauge in drained or undrained tests, and is applicable to saturated clayey and sandy soils.

Send Inquiry

Product Description

Equipment Composition

◈

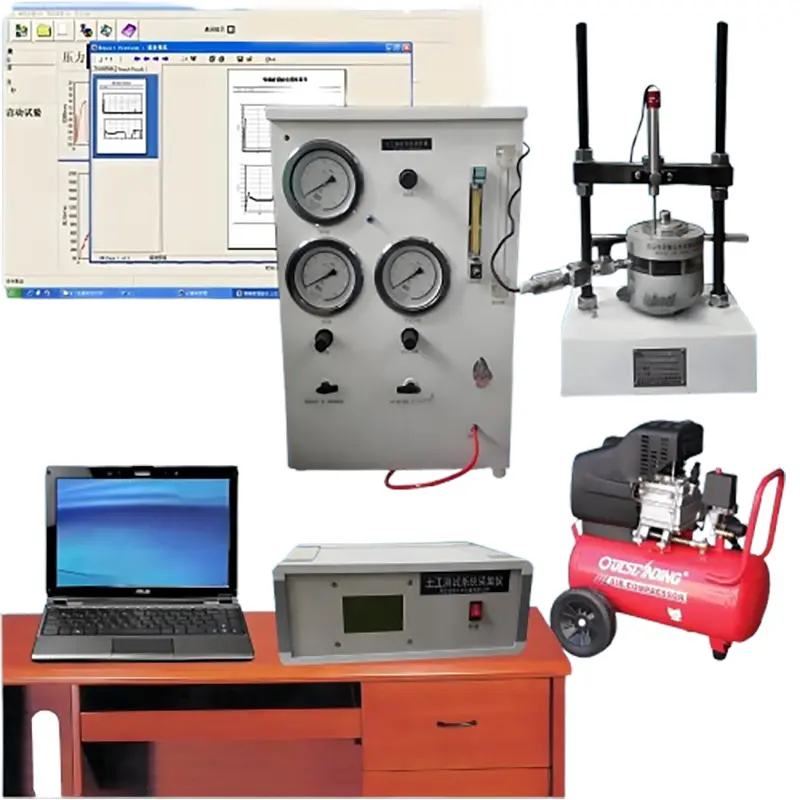

This Soil Static Lateral Pressure coefficient of viscosity instrument mainly consists of an air pump, control cabinet, air pressure reaction frame, displacement sensor, lateral pressure sensor, and computer software acquisition system.

◈

It displays and stores data graphs of pore pressure, deformation, rebound, pore pressure versus deformation, pore pressure versus time, deformation versus time, rebound graphs during loading and unloading, and the maximum, minimum, and average values of the data over time.

Supporting Test Apparatus:
K0 consolidation apparatus.

Software System:
Real-time acquisition and monitoring of changes in displacement and lateral pressure.

Instrument Features

Constant, stepwise loading can be achieved through air and water pressure. Dedicated software can automatically collect and monitor displacement and pressure in real time. With various container devices, one instrument can perform multiple tests.

Technical Parameters

Axial Load: 0～10kN; constant load required for the sample surface.
K₀ Consolidation Apparatus Sample Size: Φ61.8mm × 40mm
Calibration Sample Block: Inner diameter 61.8mm, height 100mm
Axial Pressure Gauge: 0～1MPa; Resolution: 0.005MPa
Back Pressure Gauge: 0～1MPa; Resolution: 0.005MPa
Back Pressure: 0～500kPa ±0.01kPa
Side Pressure Transmitter: 0～1MPa ±0.01MPa
Axial Displacement: 0～20mm ±0.01mm
Standard Configuration: One sample, one lateral pressure test, one deformation test
Optional Configuration: Simultaneous testing of three samples, three lateral pressure tests, and three deformation tests.

Related Instrument Principles

Static Lateral Pressure Coefficient Meter (K₀ Meter)

Measures the ratio of horizontal to vertical stress by consolidating the soil sample in a container. Suitable for cohesive soils, silt, and sand.

Triaxial Apparatus

Indirectly determines K₀ by controlling lateral pressure to simulate conditions of no lateral deformation.

GJY-type K₀ Consolidation Apparatus

Specifically designed for Φ61.8mm soil samples, featuring axial load and pressure chamber design for automatic K₀ measurement.

In-situ Testing (Dilatometer DMT)

Measures the horizontal stress index (K_D) through lateral expansion of a diaphragm, estimating K₀ for cohesive soils and sands.

Application Scenarios

Engineering Design:
Calculating the static earth pressure on retaining walls and basement sidewalls.

Scientific Research:
Studying soil deformation characteristics and initial stress state.

Operating Precautions

✔

Sample Preparation: Maintain original soil structure and avoid disturbance.

✔

Environmental Control: Temperature 20±5℃, Humidity < 85%.

✔

Data Correction: Diaphragm stiffness or instrument error correction is required.

Frequently Asked Questions

What are the primary components of the Soil Static Lateral Pressure instrument?

The instrument consists of an air pump, control cabinet, air pressure reaction frame, displacement and lateral pressure sensors, and a computer software acquisition system.

Can this equipment handle stepwise loading?

Yes, constant and stepwise loading can be achieved through precisely controlled air and water pressure systems.

What sample size is used for K₀ consolidation tests?

The standard sample size is Φ61.8mm × 40mm, which is compatible with the K₀ consolidation apparatus.

Is it possible to test multiple soil samples simultaneously?

Yes, there is an optional configuration available that supports the simultaneous testing of three samples with corresponding pressure and deformation tests.

What environmental conditions are required for accurate testing?

The testing environment should be maintained at a temperature of 20±5℃ and humidity levels below 85% to ensure data accuracy.

What types of soil are suitable for the K₀ Meter?

The Static Lateral Pressure Coefficient Meter (K₀ Meter) is suitable for testing cohesive soils, silt, and sand.
