OEM ASTM Standard Soil strength (consolidation) deformation tester Soil Test Apparatus Manufacturer, Supplier
This Soil strength (consolidation) deformation tester instrument is suitable for uniaxial compressive strength, stress-strain, and splitting strength testing of soil.

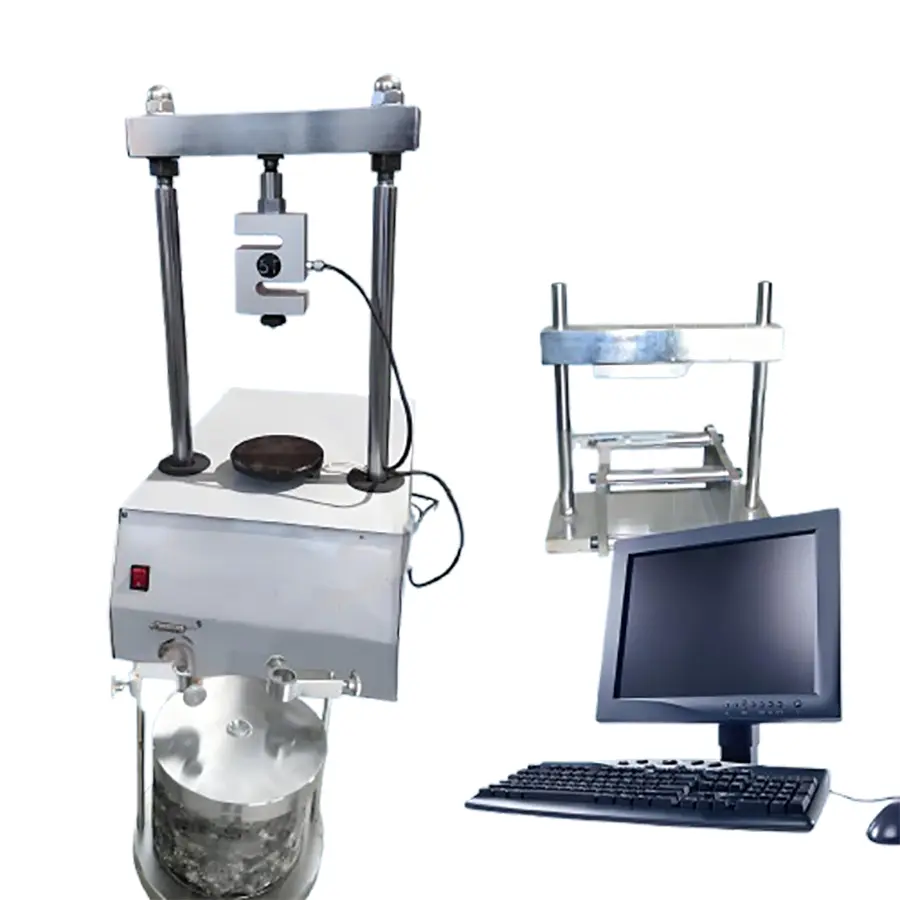

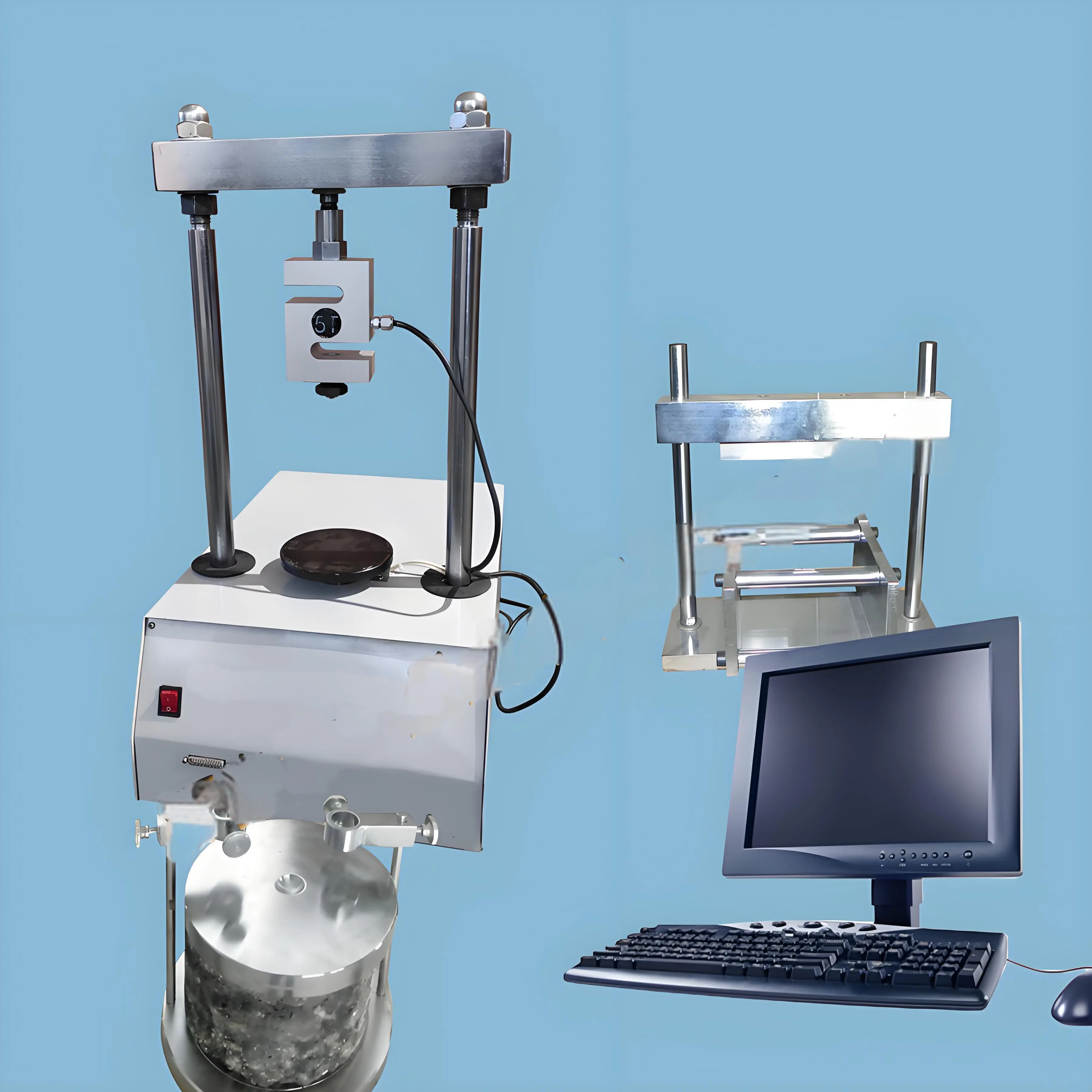

This Soil Strength Consolidation Test Machine is a column-mounted structure consisting of a base, gearbox, column, bracket, motor, controller, force sensor, and software. Power is transmitted to the gearbox via an electro-hydraulic servo. The gearbox, through a complete speed change mechanism, enables the screw to drive the lower plunger to achieve the required upward speed, thereby meeting the test requirements.
Technical Parameters
Main Unit
Loading Method: Automatic pressure application, 0 to 10 kN ± 1 N
Loading Speed: 0.001 to 50 mm/min, adjustable
Loading Rate: 0.01 to 10 kN, adjustable
Internal Deflection: 0 to 50 mm; Accuracy: 0.001 mm
Uniaxial Compression (Cylinder): Φ50×H100 mm; Φ100×H100 mm
Uniaxial Compression (Prism): Side Length 40 mm; Height 80 mm
Splitting Test: Φ100×H40 mm; Φ50×H40 mm
Optional Radial Sensor: Range 0-4 mm, Accuracy 0.001 mm
Instrument Introduction
This Soil Strength deformation tester instrument utilizes servo motors and computer digital control technology to create a fully digital closed-loop speed control system, automatically measuring and controlling the loading and unloading process. Equipped with an environmental chamber, the entire testing process is computer-controlled, including measurement, display, data processing, curve generation, and printing.
This Consolidation Testing Machine For Soil Lab can be equipped with a variety of fixtures, enabling a single instrument to perform a variety of tests, ensuring ease of use and reliability.
Frequently Asked Questions
Q1: What are the primary functions of this Soil Strength Consolidation Test Machine?
It is designed for measuring soil strength and deformation through uniaxial compression (cylinder and prism methods) and splitting tests, providing automatic loading and precise data recording.
Q2: What is the maximum loading capacity and accuracy of the unit?
The automatic pressure application ranges from 0 to 10 kN with an accuracy of ± 1 N. The reaction frame is built to handle a maximum load of 80 kN.
Q3: How does the control system ensure test accuracy?
The instrument utilizes a fully digital closed-loop speed control system powered by servo motors and computer digital control technology for precise loading and unloading.
Q4: Can the machine handle different specimen sizes?
Yes, it supports multiple dimensions including Φ50mm and Φ100mm cylinders, as well as 40mm side length prisms, depending on the test type.
Q5: Is it possible to measure Poisson's ratio with this equipment?
Yes, the machine can be equipped with an optional radial displacement sensor (0-4 mm range, 0.001 mm accuracy) specifically for measuring Poisson's ratio.
Q6: What software features are included for data management?

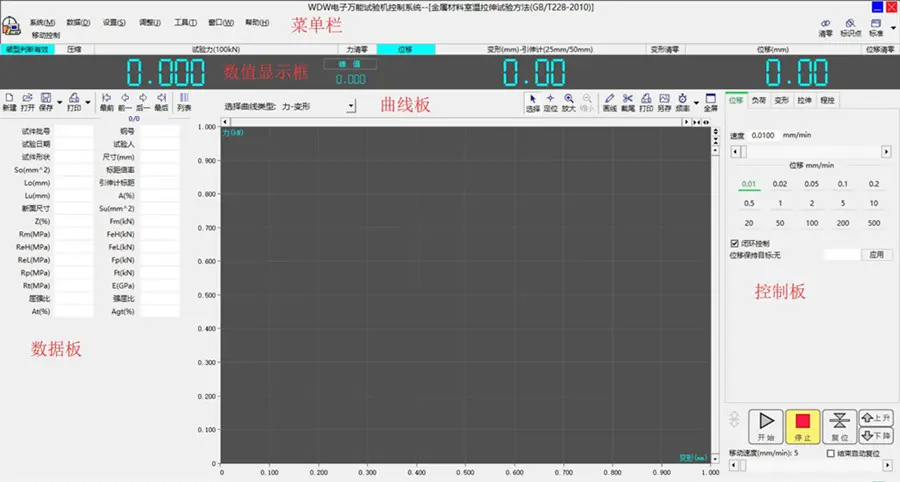

The backend software provides real-time display, data processing, curve generation, and printing capabilities for a comprehensive testing report.
