This machine works in conjunction with the core taking machine and stone cutting machine to process high-precision cubic or cylindrical test specimens that you need. Widely used in colleges and universities, water conservancy and hydropower, geology and mineral resources, transportation, construction and other departments.

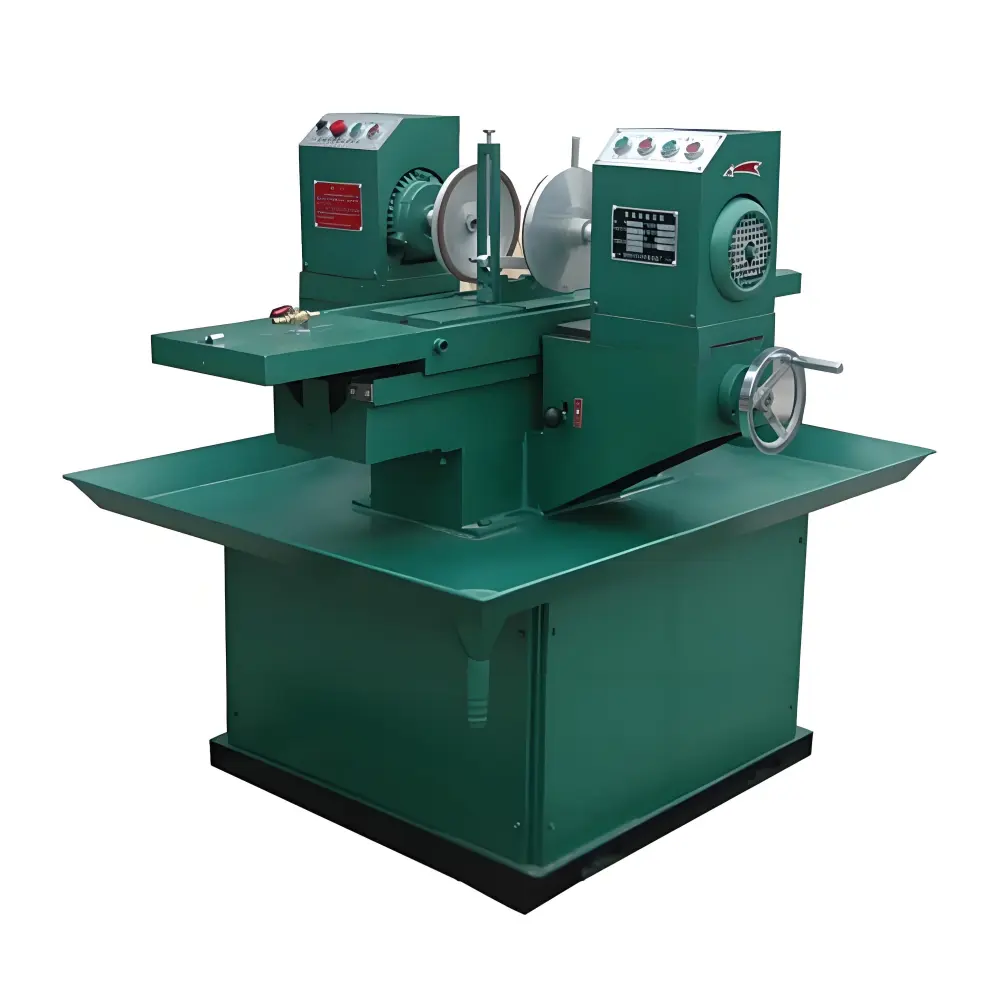

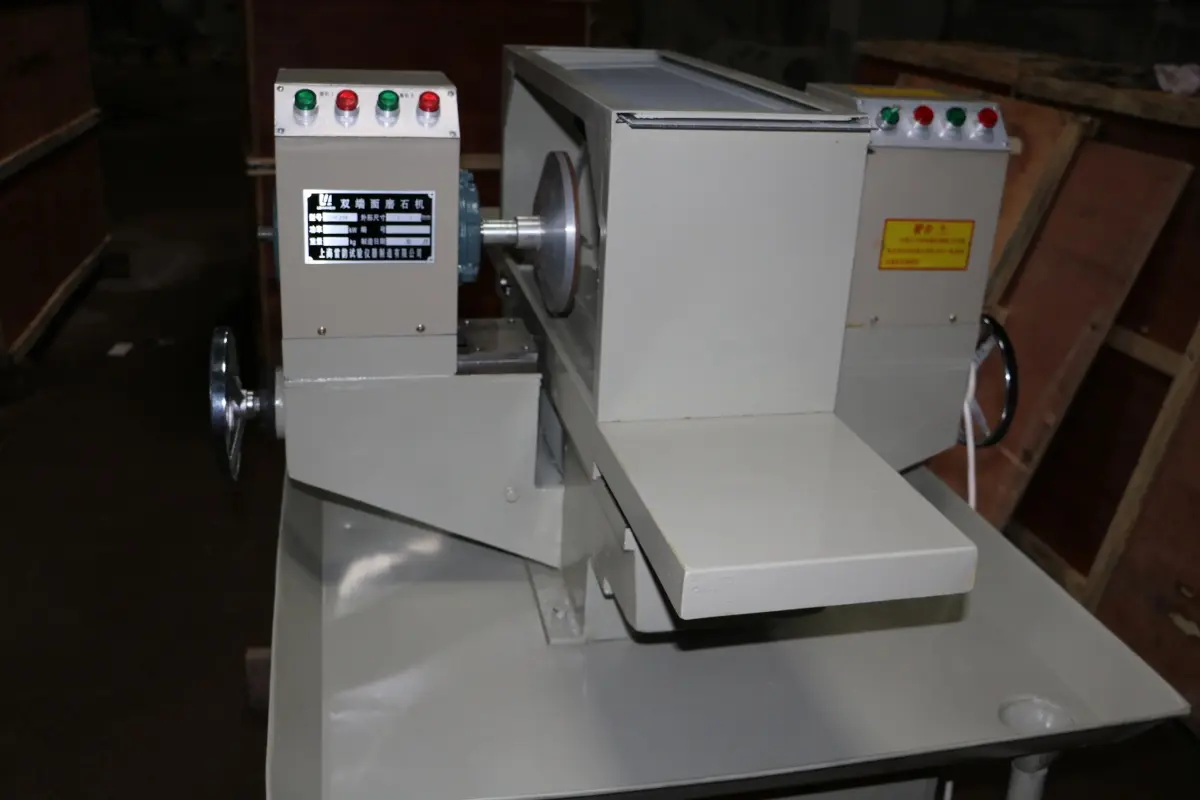

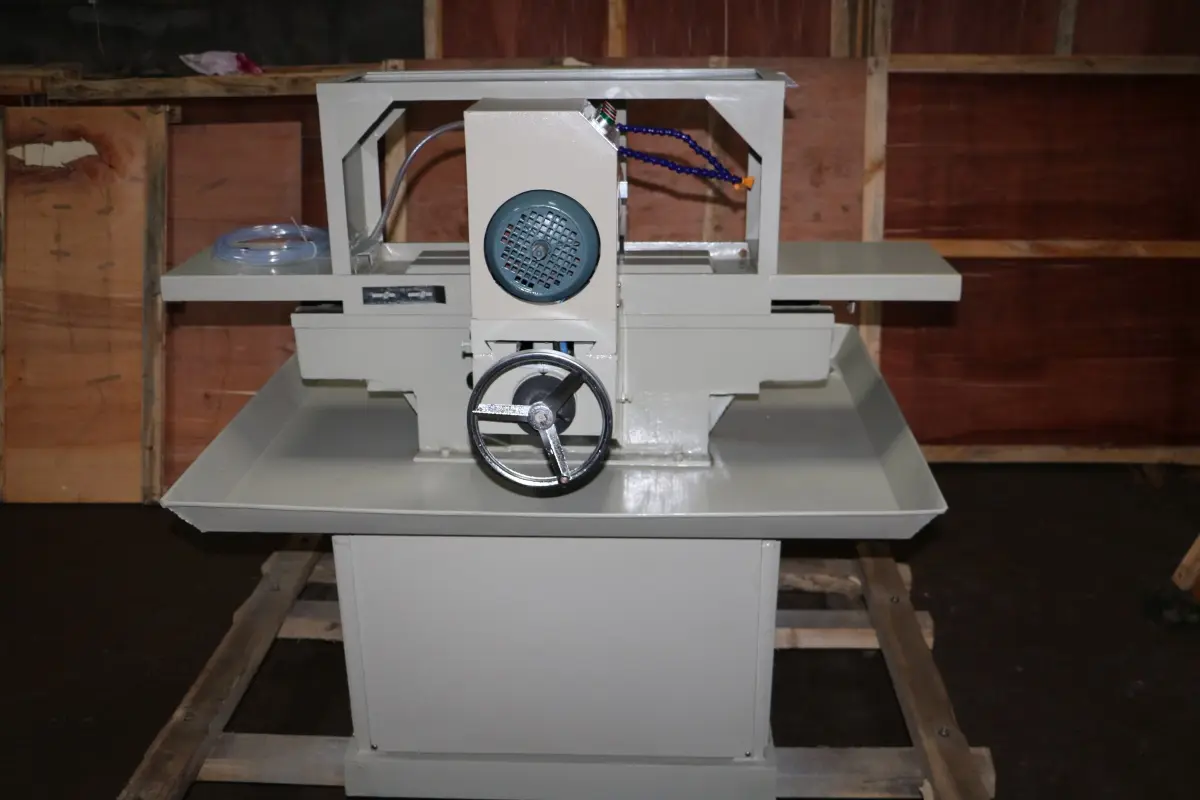

The machine consists of a base, worktable, grinding power head, variable speed transmission system, electronic control device, and other parts. The whole machine is easy to operate, with automatic feeding and stable performance.
Frequently Asked Questions
What types of specimens can this machine process?
The machine is designed to process both cubic specimens (ranging from 50mm to 150mm) and cylindrical columns (ranging from Φ50 to Φ120).
What is the precision level of the finished specimens?
It achieves a standard precision flatness of 50 ±0.05mm and a finish degree of Ra3.2 based on rough machining standards.
Does the machine require manual feeding?
No, the machine features an automatic grinding feed system with a rate of 0.04 to 0.12 mm, ensuring stable performance and ease of operation.
What kind of cooling system is required?
The machine utilizes a simple and efficient tap water cooling device to maintain optimal temperatures during the grinding process.
Which industries typically use this equipment?
It is widely utilized in colleges, universities, and departments related to water conservancy, hydropower, geology, mineral resources, transportation, and construction.
What is the power configuration of the grinding heads?
The machine is equipped with two sets of grinding heads, each providing 1.1 KW of power, supplemented by a 0.75 KW workbench motor.
