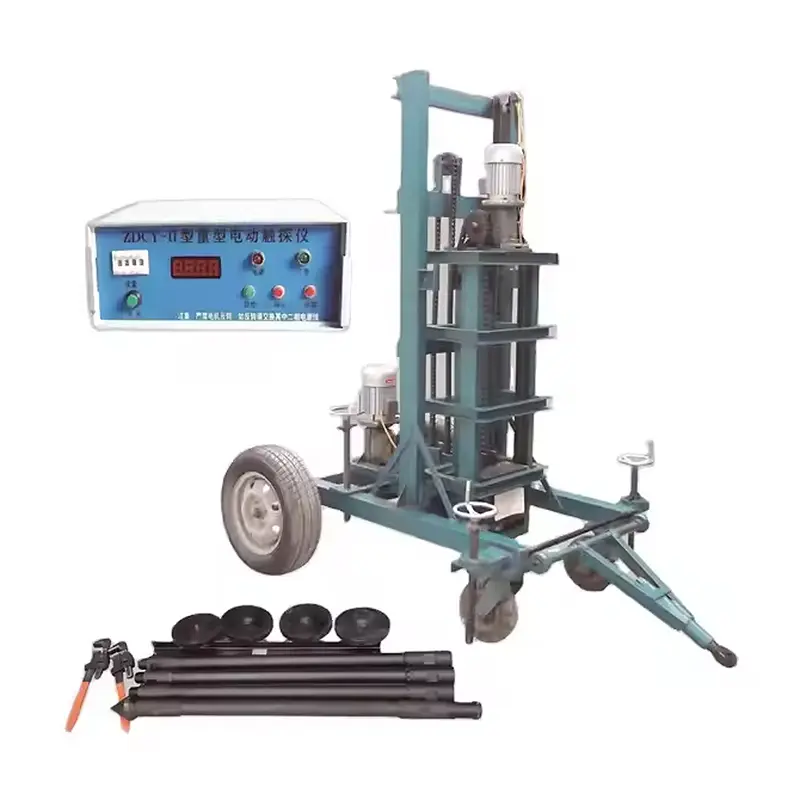

Soil electric dynamic standard heavy penetrometter instrument is a device used for on-site testing of soil mechanical properties, mainly used to evaluate soil compaction, bearing capacity and other parameters.

Soil electric dynamic probing instrument is an efficient and accurate soil testing tool widely used in multiple engineering fields, which can quickly evaluate soil mechanical properties and provide important data support for engineering design and construction.

Send Inquiry

Product Description

⚙️

Working Principle

Dynamic probing: Utilizing an advanced electric hammer device, the system drives the probe into the soil at a controlled rate. By recording penetration resistance, operators can accurately analyze soil stratification and mechanical characteristics.

Electric Drive: The system is powered by a high-torque electric motor, which ensures a stable and controllable hammering force, eliminating the inconsistencies found in manual testing.

🛠️

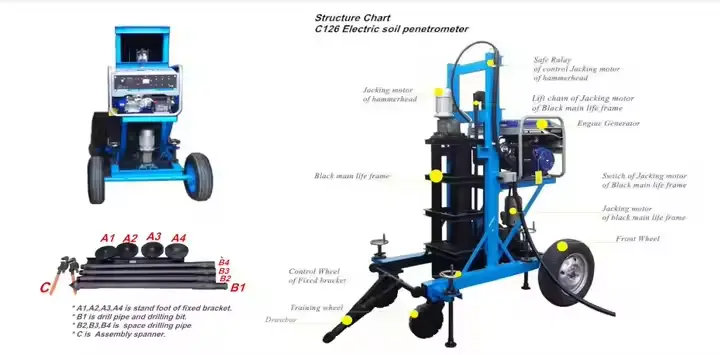

Main Components

🔹

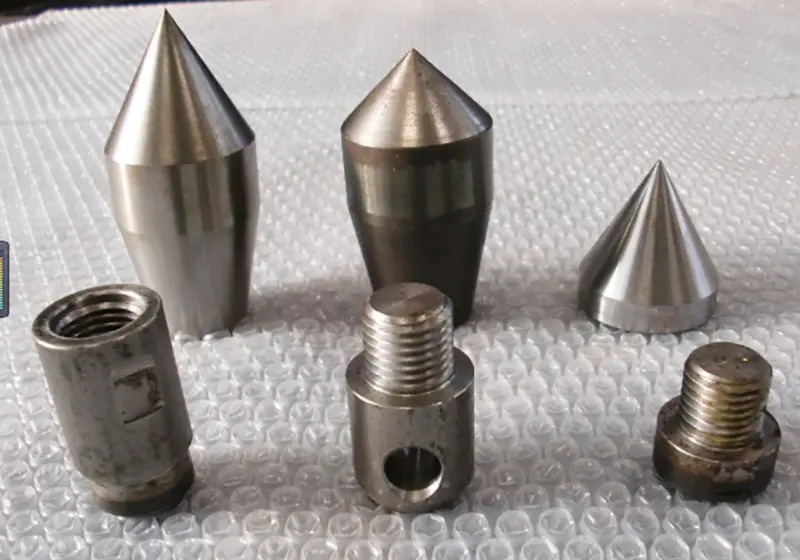

Probe: Conical design optimized for soil penetration and resistance measurement.

🔹

Electric Hammer: High-precision device providing consistent impact force.

🔹

Data Collection: Real-time system for recording depth and resistance metrics.

🔹

Control Unit: Adjustable hammering frequency to maintain uniform test conditions.

🔹

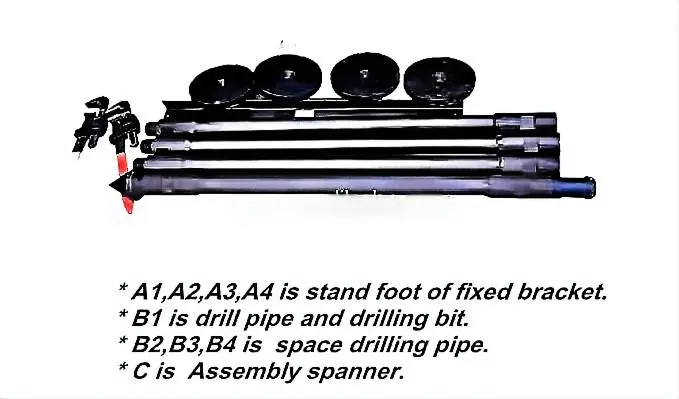

Support System: Includes bracket and guide rods to ensure vertical insertion accuracy.

🌐

Application Fields

Geological Exploration: Essential for evaluating soil mechanical properties for engineering design.

Construction Engineering: Critical for testing foundation bearing capacity to ensure safety.

Infrastructure: Used in road and bridge construction to evaluate roadbed stability.

Environmental: Monitoring soil stability and pollution impact in environmental projects.

✅

Key Advantages

🚀 Efficiency: Rapid data acquisition for soil mechanics.
📦 Portability: Lightweight, modular design perfect for remote field work.
🎯 Accuracy: Electric control ensures consistent energy transfer and reliable data.
🔧 Versatility: Suitable for Standard Penetration Tests (SPT) and multiple soil types.

📊

Technical Parameters

Product Name	Dynamic Heavy Penetrometer
Hammer Quality	63.5 kg
Drop Distance	760 mm
Hammering Speed	15 strikes/min (±2 strikes)
Outside Diameter (Rod)	42 mm
Dimensions	L 1.3m * W 2.1m * H 2.1m
Power Supply	380V 50Hz (Generator Compatible)
Total Weight	300 kg
Application	Geotechnical Soil Testing

❓

FAQ (Frequently Asked Questions)

What international standards does this equipment comply with?

The device fully complies with ASTM D1586, BS 1377-9, EN ISO 22476-2, and GB 50021. It supports Standard Penetration Testing (SPT) and Heavy Dynamic Penetration Testing (DPT).

Can the hammer weight and drop distance be adjusted?

Yes. While the standard configuration is a 63.5kg hammer with a 760mm drop, the modular design allows for adjustments (10kg, 28kg, 50kg) to accommodate light, medium, or super-heavy probing requirements.

What are the advantages of electric drive over manual rope pulling?

Electric automation eliminates human error, friction loss from ropes, and inconsistent drop heights. It ensures a precise 760mm free fall and a constant hammering frequency, leading to much more accurate N-values.

How is the equipment powered in remote field locations?

For sites without mains power, we provide high-performance, portable generators designed to provide stable power to the electric lifting and control systems in harsh environments.

How does the system record the number of hammer blows?

The equipment features an integrated intelligent counter. Industrial-grade proximity sensors automatically record each drop. Advanced versions can sync with displacement sensors to record N-values per 10cm or 30cm of penetration.

Is the equipment durable enough for hard soil layers?

Absolutely. The drill rods are made from high-strength alloy steel (42CrMo), and the conical probes are made from ultra-high hardness wear-resistant alloys, ensuring a service life 3-5 times longer than standard carbon steel.
